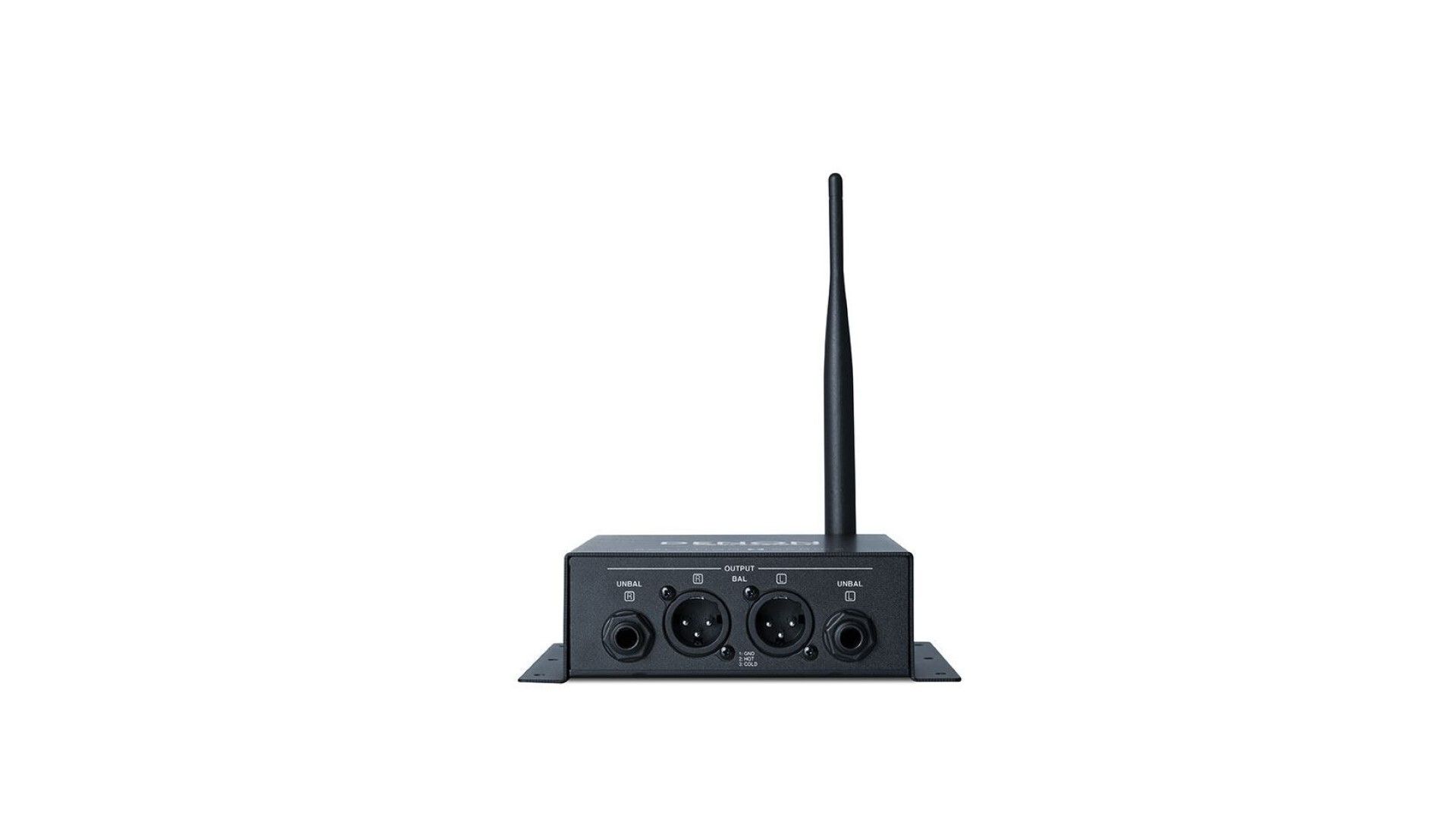

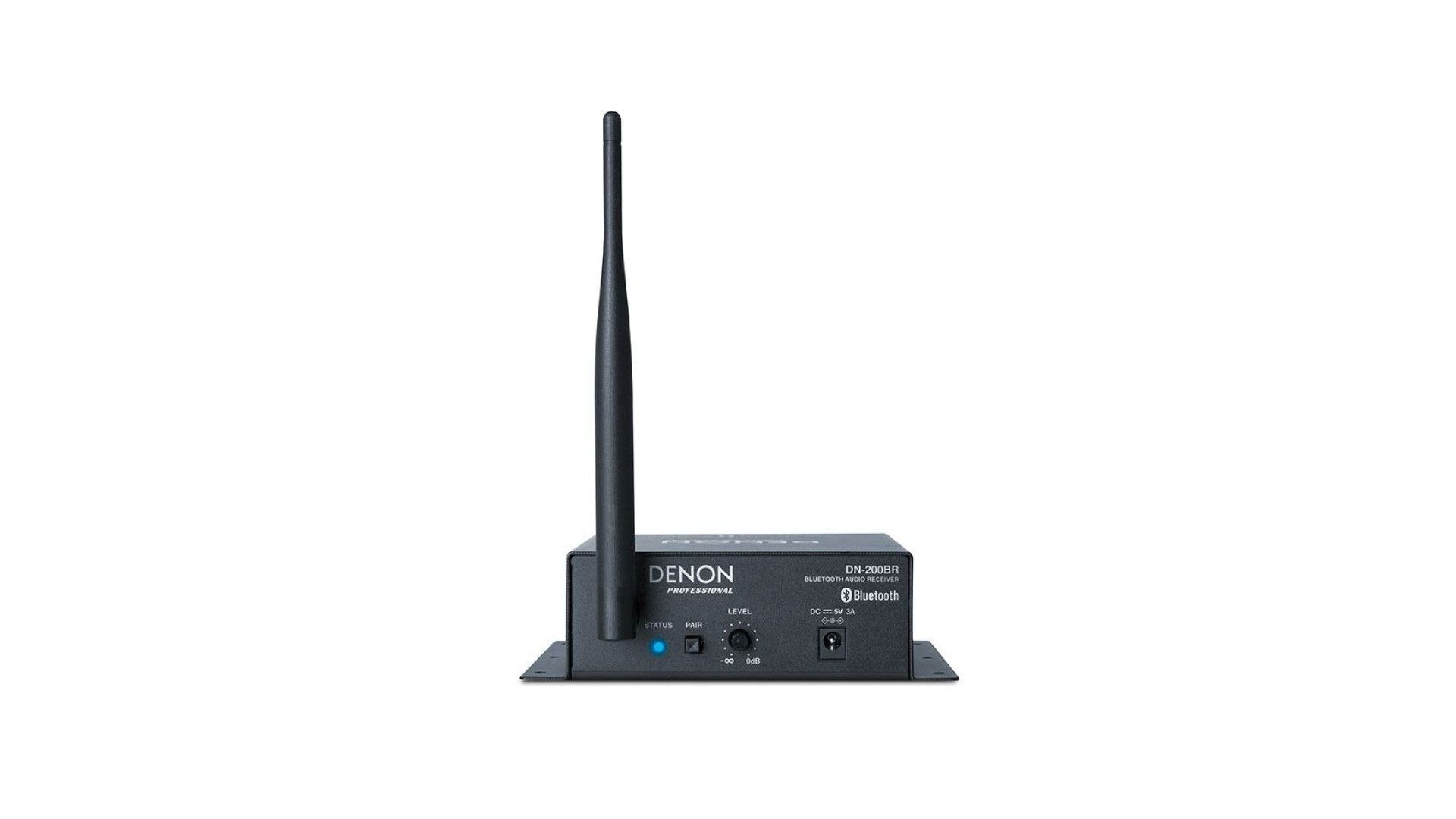

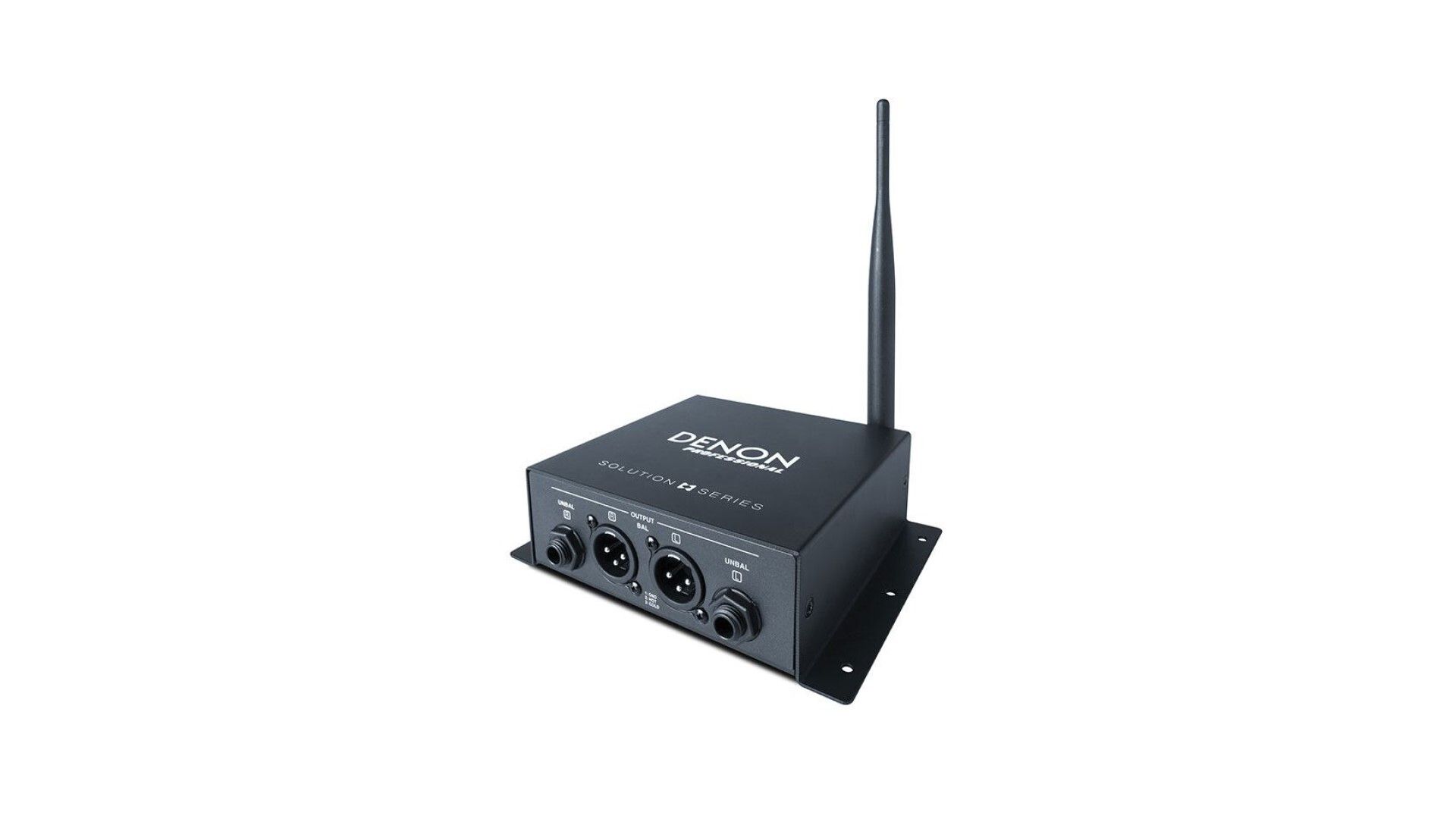

DN-200BR Stereo Bluetooth Audio Receiver

Denon Professional's Solution Series is designed to be the best friend of audio contractors. Its specialty is solving audio challenges easily and inexpensively by getting signal to someplace that would be otherwise difficult or inconvenient. Simple to install, configure and operate, the Solution Series products belong in the toolbox of every audio installer.

Audio Specification

    Frequency response: 20 Hz – 20 KHz (+1 dBu)
    Signal-to-Noise Ratio: > 75 dB
    THD: < 0.01%


Bluetooth Specifications

    Version: 2.1 + Enhanced Data Rate (EDR)
    Maximum Receiver Power: Class 2, 4 dBm
    Receiver Frequency: 2.4 GHz – 2.480 GHz
    Receiver Range: Up to 82 ft. / 25 m
    Receiver Sensitivity: -80 dBm @ 0.1% BER
    Supported Codec: SBC, MP3, AAC, aptX
    Supported Profiles
    AVCTP 1.0, AVRCP 1.0, GAVDP 1.2, AVDTP 1.0, A2DP 1.2, Hands-Free        Profile (HFP) 1.5, Headset Profile (HSP) 1.1


Analog Output

    Balanced (XLR): +4 dBu (+1 dB)
    Unbalanced (1/4” / 6.35mm): -2 dBu (+1 dB)


Environmental

    Operation Temperature: 41–95°F / 5–35°C


General

    Power Adapter: 5V DC, 2A, center-positive
    Input Voltage: 100–240 V AC, 50/60 Hz
    Dimensions (width x depth x height): 5.8” x 4.6” x 1.8” (149 x 117 x 45 mm)
    Weight: 1.3 lbs. (0.6kg)
